Webhooks

Webhooks allow DIVE Online to integrate with additional applications by notifying them when a verification event has completed.

1. Creating a New Webhook

Create a webhook in the DIVE Online Web Portal here

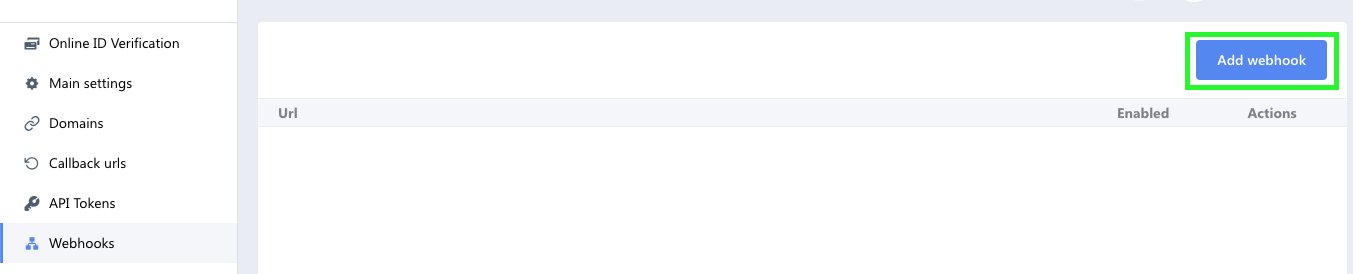

2. Click the Add Webhook button

SC1

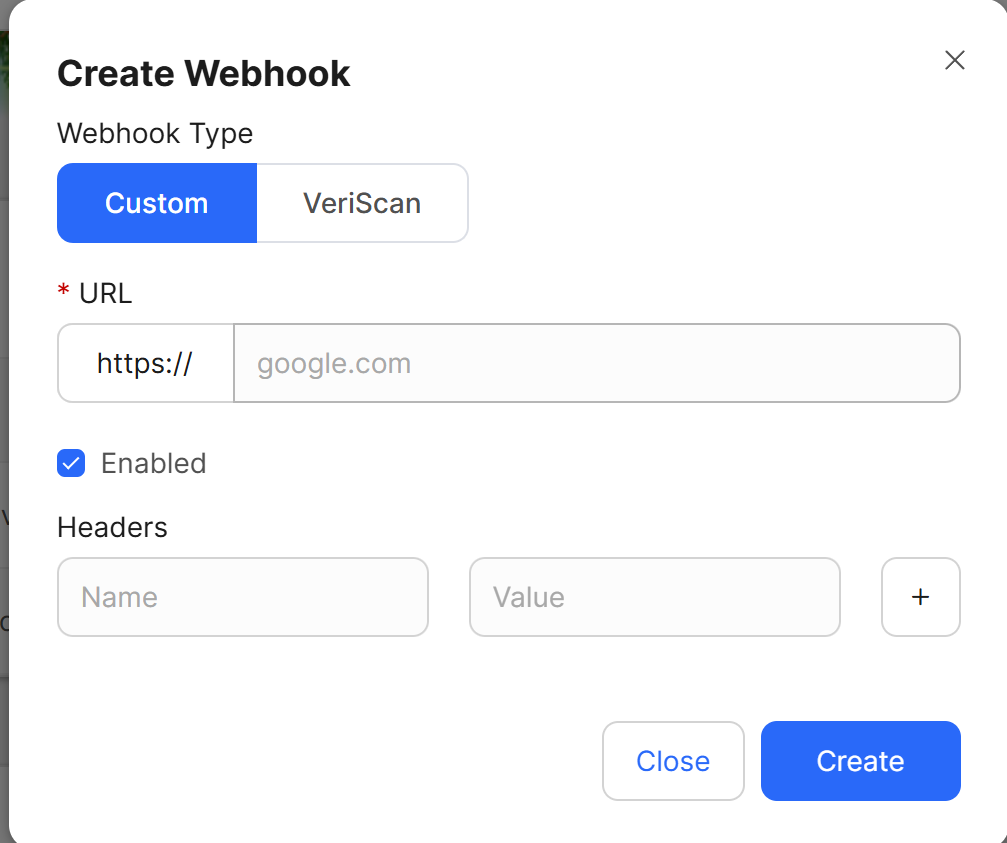

3. Choose the Webhook type

DIVE Online supports two types of Webhooks:

  • VeriScan - Sends a Webhook event to the IDScan.net VeriScan application when a verification event occurs.
  • Custom - Sends a Webhook event to a custom URL when a verification event occurs.

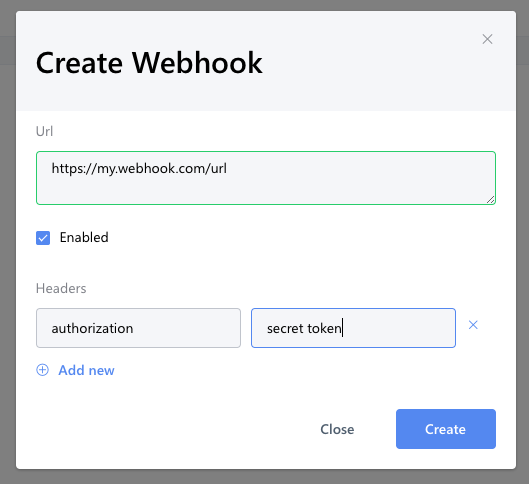

Enter the URL that the Webhook request should target when the validation event occurs. You will be able to add custom headers that will be sent along with verification data to authenticate the request being made.

SC1

Note

URL must be valid and the application must accept POST requests

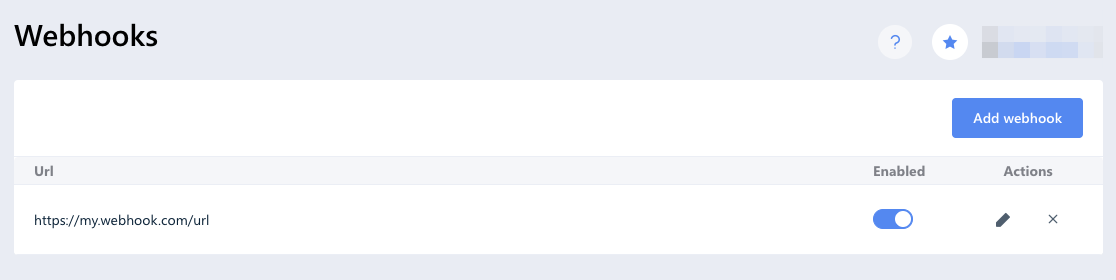

You should immediately see the newly created webhook in the list.

SC1

2. Creating request

Create a new verification request by sending an SMS/Email message to an end user.

3. Receiving data

When the verification process on the DIVE API server is complete all registered and enabled Webhooks will receive an HTTP POST request containing the verification data in the body.

Note

We have a retry policy set to 10 retries before considering a webhook endpoint unreachable.

Request example:

[POST] https://my.webhook.com/url

{
    "Id":2014,
    "Created":"2020-07-23T09:31:25.6675069Z",
    "Data":"{\"ValidationResponseId\":2024,\"ValidationRequestId\":\"f5f02a72-6bc4-4651-9eb5-08d82edcbb8d\",\"DocumentType\":1,\"Document\":{\"IDType\":\"DL\",\"Country\":\"United States\",\"AbbrCountry\":\"US\",\"Abbr3Country\":\"USA\",\"ID\":\"088720519\",\"DOB\":\"1994-08-09\",\"Issued\":\"2015-08-14\",\"Expires\":\"2021-08-09\",\"FullName\":\"POPPENHAGEN,LINDSAY\",\"PrivateName\":\"PARKER MORGAN\",\"FamilyName\":\"POPPENHAGEN\",\"City\":\"GREENWICH\",\"State\":\"CT\",\"Zip\":\"06831-5325\",\"Address\":\"15 DEARFIELD LN\",\"Class\":\"D\",\"Gender\":\"Female\",\"Height\":\"5'05\\\"\",\"Eyes\":\"Green\",\"Hair\":null,\"Weight\":null,\"Template\":\"US_OH3\",\"FirstName\":\"LINDSAY\",\"MiddleName\":\"MORGAN\"},\"AttemptsLeft\":14,\"Status\":1,\"ValidationStatus\":{\"Expired\":false,\"DocumentIsValid\":false,\"FaceIsValid\":true},\"InvalidDataErrors\":null}",
    "EventType":1
}
  • Id – identifier of the current webhook event. It is unique for every validation request
  • Created – webhook event creation date
  • Data – contains JSON formatted data with parsed document data and validation result
  • EventType – indicates type of the event connected with the validation result
    • 0 - Success. Document passed checks
    • 1 - Fail. Document failed one or more checks
    • 2 - InvalidData. Validation request contains invalid data
    • 3 - Error. Service error
